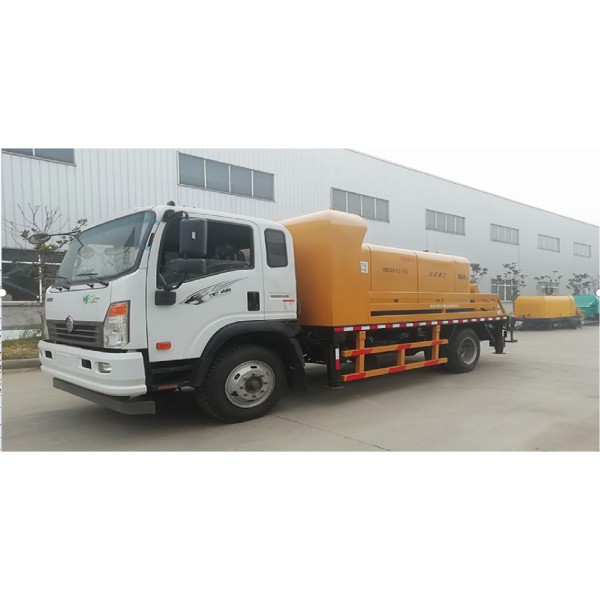

Truck-Mounted Concrete Pump

Stock:

Brand: Saner

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Product Details

Truck-Mounted Concrete Pump Technical Specifications

Complete Technical Parameters and Configuration Details

Product Name

Concrete Pump Truck

Model / Specification

HBC60-13-75S

Total Weight

7700 kg

Pumping System

Parameter Name	Specification / Model	Parameter Value
Max Theoretic Output	Concrete delivery	64 m³/h
Max Theoretic Pumping Pressure	Hydraulic pressure	12 MPa
Hydraulic System	Type	Double pump & double circuit opening
Main Oil Pump Displacement	Kawasaki	190 ml/r
Hydraulic System Pressure	Maximum	32 MPa
Power Supply Type	Electric engine	Voltage: 380V
Power Supply Type	Diesel engine	Power: 75 kW
Distribution Valve Type	Main valve	S pipe valve
Conveying Cylinder Bore / Stroke	Main cylinders	Ф230 / 1565 mm
Max Aggregate Size	Concrete mix	40 mm
Mix Hopper Volume	Hopper capacity	800 L
Feeding Height	Loading height	≤1450 mm
Max Theoretic Delivery Vertical Distance	Pumping height	115 m
Max Theoretic Delivery Horizontal Distance	Pumping distance	300 m
Radiator Cooling Type	Cooling system	Air cooling system
Hydraulic Pump Type	Main pump	Ram pump
Concrete Slump	Workability	160-230 mm

Chassis Parameters

Whole Machine

Parameter Name	Specification / Model	Parameter Value
Overall Dimensions (L × W × H)	External size	7500 × 2150 × 2400 mm
Total Weight	Operating weight	7700 kg
