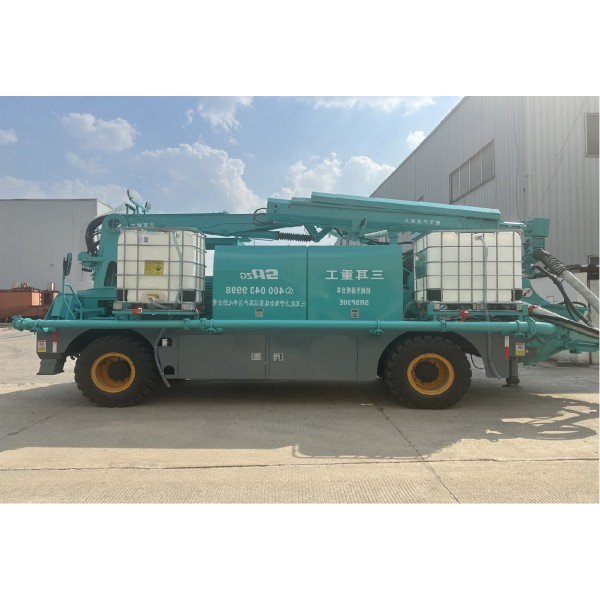

SRSP30E (A9) 4WD Wet Spraying Truck | 35m³/h Output

Product Details

Product Name

Mechanical Arm Mixed Spraying Truck

Product Model

SRSP30E

Product Abbreviation

Overall Machine Parameters

SRSP30E

Overall Dimensions

8600 × 2640 × 3300 mm

Rated Weight

Approximately 16 Tons

Maximum Working Height

16 meters

Maximum Working Width

20 meters

Maximum Working Depth

5.05 meters

Minimum Tunnel Dimensions (Width × Height)

≥ 5m × 7m

Chassis Section Configuration

Steering Drive Axle

Engineering Chassis Specialized Axle

Engine

73.5 kW, China National Stage IV Emission Standard

Gearbox

BYD4208 Type Gearbox

Brand: Fujian Wanteng

Torque Converter

YJ315 Type Hydraulic Torque Converter

Tires

16/70-20-16PR, Pneumatic Tires

Boom Parameters

SRSP30E

Boom Structure Form

Main boom, forearm luffing, two-section forearm telescoping

Main Boom Rotation Range

300°

Main Boom Luffing Range

0-70°

Full Arm Telescoping

14.6 meters

Forearm Luffing Range

30-110°

Forearm Telescoping

2-section telescoping arm ≥ 9.4m (extended), 4.6m (retracted)

Nozzle Axial Rotation

360°

Nozzle Axial Swing

240°

Nozzle Brushing Motion

360°

Control Form

Full Remote Control

Working Drive Method

Chassis engine or three-phase asynchronous motor

Functional Components Configuration

Accelerator Pump

25 Extrusion Pump

Brand: Shanghai Juxin

Cable Reel

75 kW, Automatic retracting and releasing

Brand: German Duowen

Main Cylinder

Φ100 × Φ70-1000

Brand: Changsha Xieli

Delivery Cylinder

Φ180 × 1170

Brand: Changsha Xieli

Main Motor

75 kW, Three-phase asynchronous motor

Brand: China Fangda Motor

Hopper

180 Hopper Capacity, Same model as Geli

Brand: San'er Heavy Industry

Main Oil Pump

140 ml/rev, Constant pressure

Brand: Push

Constant Pressure Pump 1

45 ml/rev, Constant pressure

Brand: Push

Constant Pressure Pump 2

28 ml/rev, Constant pressure

Brand: Push

Gear Pump

22 ml/rev, High-pressure resistant gear pump

Brand: Anhui Wanye

Hydraulic Oil Pump

Pumping solenoid valve system

Pumping Solenoid Valve

Pilot-operated solenoid valve

Brand: Vickers

Boom Multi-way Valve

Load-sensitive multi-way valve

Brand: Shanghai Nuoma

Pumping Parameters

SRSP30E

Working Drive Method

Chassis engine or three-phase asynchronous motor

Motor Rated Power

75 kW

Motor Operating Voltage

380 V

Hopper Volume

0.65 m³

Concrete Displacement

35 m³/h

Pumping Enclosure

Fully Enclosed Design

Delivery Cylinder (Bore × Length)

Φ180 × 1170 mm

Main Cylinder (Bore × Stroke)

Φ100 × Φ70 × 1000 mm

System Maximum Pressure

28 MPa

Concrete Outlet Pressure

8.6 MPa

Maximum Concrete Particle Size

< 16 mm

Feeding Height

< 1500 mm

Accelerator Pump Maximum Theoretical Displacement

Frequency control, 0.3 L/rev, higher speed results in higher flow rate

Accelerator Pump Maximum Outlet Pressure

1.6 MPa

Delivery Pipe Diameter

Φ125-Φ100 mm, Φ100-Φ90 mm variable diameter

Nozzle Orifice Diameter

Φ50 mm

Hydraulic and Electrical System Configuration

Hydraulic Oil Pump

Nozzle swing motor system

Nozzle Swing Motor

240-degree rotation capability

Brand: Shandong Yuhui / Kait

Nozzle Brushing Motor

360-degree rotation capability

Brand: Shandong Yuhui / Kait

Rotation Reducer

External spline output shaft B70×64

Brand: Zhejiang Xinpeika

Remote Controller

Intelligent remote controller

Brand: Zenxun

Contactor

Imported from South Korea

Brand: LS (South Korea)

Controller

High-quality domestic brand

Brand: Foshan Jirong Intelligent

Cable

National Standard 50 mm² standard cable

Brand: Changsha Hengtong

Engineering Vehicle Chassis Parameters

SRSP30E

Drive Form

Four-Wheel Drive (4WD)

Engine Power

73.5 kW

Wheelbase

4100 mm

Front Axle Track (Wheel Center)

1890 mm

Rear Axle Track (Wheel Center)

1890 mm

Tires

16/70-20 16PR Pneumatic Tires

Front Axle Load / Rear Axle Load

11 Tons / 11 Tons

Maximum Speed

25 km/h

Maximum Climbing Angle

25°

Minimum Turning Radius

10 meters
