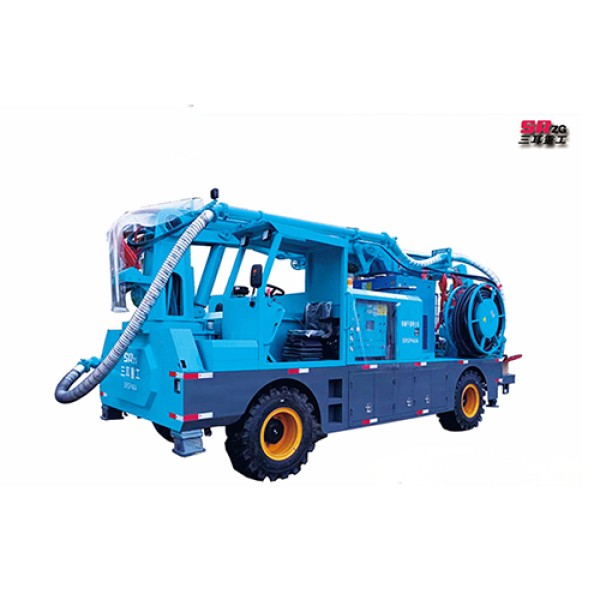

40K Robotic Wet Shotcrete Spraying Machine

40K Robotic Wet Shotcrete Spraying Machine

40K Robotic Wet Shotcrete Spraying Machine

40K Robotic Wet Shotcrete Spraying Machine

40K Robotic Wet Shotcrete Spraying Machine

Stock:

Brand: Saner

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

{{ value.name }}

Product Details

Product Name

Mechanical Arm Wet Spraying Truck

Model

SRSP40K

Abbreviation

C40

Overall Machine Parameters

Overall Dimensions

8800 × 2640 × 3300 mm

Rated Weight

Approximately 17.5 Tons

Maximum Working Height

16 meters

Maximum Working Width

20 meters

Maximum Working Depth

5.05 meters

Minimum Tunnel Dimensions (Width × Height)

> 5m × 7m

Chassis Configuration

Steering Drive Axle

Specialized Axle for Engineering Chassis

Fujian Wanteng

Engine

103 kW, China Stage III Emission Standard

Yuchai / Dongfanghong

Gearbox

B5428 Type Gearbox

Qingshou Beilian

Torque Converter

YJ320B-10 Hydraulic Torque Converter

Qingshou Beilian

Tires

16/70-20-16PR, L56 Pattern

Morays / Chaoyang Tires

Boom Parameters

Boom Structure Form

Main boom and forearm luffing, with two-section forearm telescoping

Control Form

Electrical Proportional

Main Boom Rotation

270~300°

Main Boom Luffing

0~70°

Forearm Luffing (Relative to Main Boom)

0~110°

Forearm Telescoping

2300mm × 2

Nozzle Axial Rotation

360°

Nozzle Axial Swing

240°

Nozzle Brushing

360°

Control Form

Full Remote Control

Working Drive Method

Chassis engine or three-phase asynchronous motor

Functional Components Configuration

Accelerator Pump

25 Squeeze Pump

Juxin / Weihai Deze

Cable Reel

75+75 kW, Automatic retracting

Liling Machinery

Main Cylinder

Φ100 × Φ70-1000

Changsha Xieli

Delivery Cylinder

Φ180 × 1170

Changsha Xieli

Main Motor

75 kW, three-phase asynchronous motor

China Fangda Motor

Hopper

180 Hopper

San'er Heavy Industry

Main Oil Pump

190 ml/r, constant pressure

Push

Constant Pressure Pump 1

45 ml/r, constant pressure

Push

Constant Pressure Pump 2

28 ml/r, constant pressure

Push

Gear Pump

22 ml/r, high-pressure resistant gear pump

Anhui Wanye

Pumping Solenoid Valve

Pilot-operated solenoid valve

Vickers / Shaohan

Boom Multi-way Valve

Load-sensitive multi-way valve

Jiangsu Kemai

Nozzle Swing Motor

240-degree rotation

Weihai Huannuo

Nozzle Brushing Motor

360-degree rotation

Weihai Huannuo

Rotation Reducer

External spline output shaft B70×64

Ningbo Yuhao

Pumping Parameters

Working Drive Method

Chassis engine or three-phase asynchronous motor

Motor Rated Power

75 kW

Concrete Output

40 m³/h

Pumping Enclosure

Fully Enclosed

Delivery Cylinder (Bore × Length)

Φ180 × 1170 mm

Main Cylinder (Bore × Stroke)

Φ100 × Φ70 × 1000 mm

System Maximum Pressure

28 MPa

Electrical System Configuration

Contactor

LS (South Korea)

Controller

High-quality domestic brand

Cable

National Standard 120 mm² cable

Fixed Screw Air Compressor

90 kW, 15.6 m³/min

Saner

Engineering Chassis Parameters

Drive Form

4×4 Drive

Engine Power

103 kW

Wheelbase

4100 mm

Front Axle Track (Wheel Center)

1890 mm

Rear Axle Track (Wheel Center)

1890 mm

Tires

16/70-20 16PR, L56 pneumatic tires

Front/Rear Axle Load

11 T / 11 T

Maximum Speed

20 km/h

Maximum Gradeability

25°

Minimum Turning Radius

10 m
