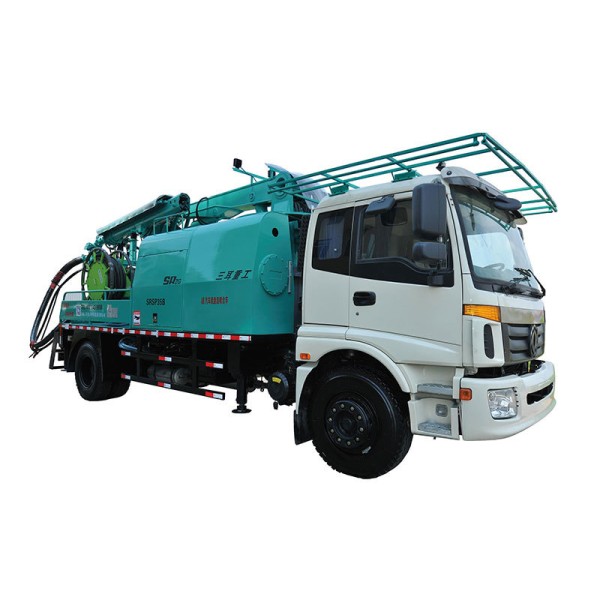

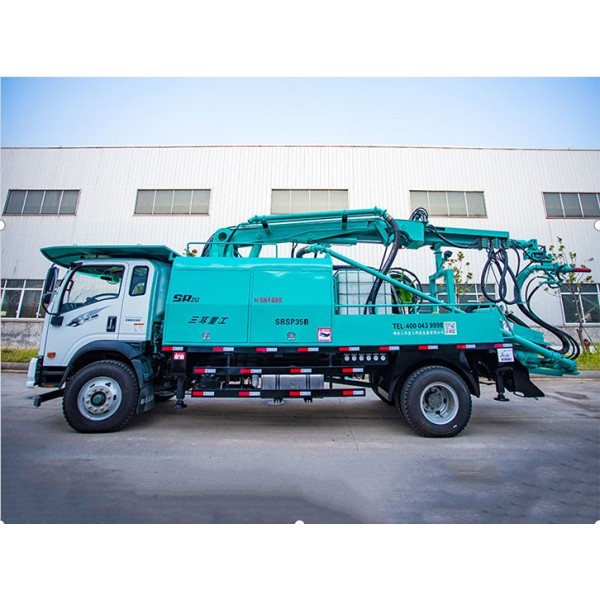

A8 Robotic Wet Shotcrete Spraying Machine

A8 Robotic Wet Shotcrete Spraying Machine

A8 Robotic Wet Shotcrete Spraying Machine

Stock:

Brand: Saner

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

{{ value.name }}

Product Details

Mechanical Arm Wet Spraying Truck

Complete Technical Specifications and Configuration Details

Product Name

Mechanical Arm Wet Spraying Truck

Product Model

SRSP40K

Product Abbreviation

C40

Overall Machine Parameters

Overall Dimensions

8800 × 2640 × 3300 mm

Rated Weight

Approximately 17.5 Tons

Maximum Working Height

16 meters

Maximum Working Width

20 meters

Maximum Working Depth

5.05 meters

Minimum Tunnel Dimensions (Width × Height)

> 5m × 7m

Chassis Section Configuration

Steering Drive Axle

Engineering Chassis Specialized Axle

Brand: Fujian Wanteng

Engine

103 kW, China National Stage III Emission Standard

Brand: Yuchai / Dongfanghong

Gearbox

BS428 Type Gearbox

Brand: Qingzhou Beilian

Torque Converter

YJ320B-10 Hydraulic Torque Converter

Brand: Qingzhou Beilian

Tires

16/70-20-16PR, L56 Tread Pattern

Brand: Aolaishi / Chaoyang Tires

Boom Parameters

Boom Structure Form

Main boom, forearm luffing, two-section forearm telescoping

Control Form

Electrical Proportional Control

Main Boom Rotation Range

270~300°

Main Boom Luffing Range

0~70°

Forearm Luffing Range (Relative to Main Boom)

0~110°

Forearm Telescoping

2300mm × 2 sections

Nozzle Axial Rotation

360°

Nozzle Axial Swing

240°

Nozzle Brushing Motion

360°

Control Form

Full Remote Control

Working Drive Method

Chassis engine or three-phase asynchronous motor

Functional Components Configuration

Accelerator Pump

25 Extrusion Pump

Brand: Juxin / Weihai Deze

Cable Reel

75+75 kW, Automatic retracting and releasing

Brand: Liling Machinery

Main Cylinder

Φ100 × Φ70-1000

Brand: Changsha Xieli

Delivery Cylinder

Φ180 × 1170

Brand: Changsha Xieli

Main Motor

75 kW, Three-phase asynchronous motor

Brand: China Fangda Motor

Hopper

180 Hopper Capacity

Brand: San'er Heavy Industry

Main Oil Pump

190 ml/rev, Constant pressure

Brand: Push

Constant Pressure Pump 1

45 ml/rev, Constant pressure

Brand: Push

Constant Pressure Pump 2

28 ml/rev, Constant pressure

Brand: Push

Gear Pump

22 ml/rev, High-pressure resistant gear pump

Brand: Anhui Wanye

Pumping Solenoid Valve

Pilot-operated solenoid valve

Brand: Vickers / Shaohan

Boom Multi-way Valve

Load-sensitive multi-way valve

Brand: Jiangsu Kemai

Nozzle Swing Motor

240-degree rotation capability

Brand: Weihai Huannuo

Nozzle Brushing Motor

360-degree rotation capability

Brand: Weihai Huannuo

Rotation Reducer

External spline output shaft B70×64

Brand: Ningbo Yuhao

Pumping Parameters

Working Drive Method

Chassis engine or three-phase asynchronous motor

Motor Rated Power

75 kW

Motor Operating Voltage

380 V

Concrete Output Capacity

40 m³/h

Pumping Enclosure

Fully Enclosed Design

Delivery Cylinder (Bore × Length)

Φ180 × 1170 mm

Main Cylinder (Bore × Stroke)

Φ100 × 70 × 1000 mm

System Maximum Pressure

28 MPa

Electrical System Configuration

Contactor

Brand: LS (South Korea)

Controller

High-quality domestic brand controller

Cable

National Standard 120 mm² cable specification

Fixed Screw Air Compressor

90 kW power, 15.6 m³/min air delivery

Brand: Saner

Engineering Chassis Parameters

Drive Form

4-Wheel Drive (4WD)

Engine Power

103 kW

Wheelbase

4100 mm

Front Axle Track (Wheel Center)

1890 mm

Rear Axle Track (Wheel Center)

1890 mm

Tires

16/70-20 16PR, L56 pneumatic tires

Front Axle Load / Rear Axle Load

11 Tons / 11 Tons

Maximum Speed

20 km/h

Maximum Gradeability

25° incline capability

Minimum Turning Radius

10 meters
