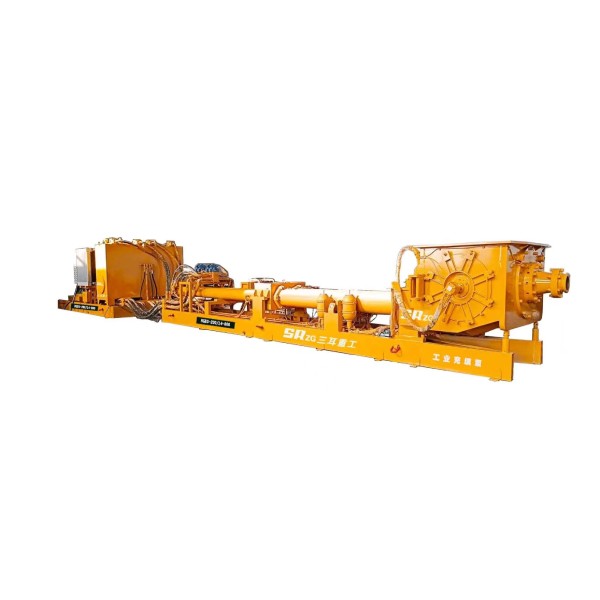

Mine Filling Pump

Stock:

Brand: Saner

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Product Details

Mine Filling Pump Technical Specifications

Complete Parameter List

Product Name

Mine Filling Pump

Model / Specification

YE3-400-4

Parameter Category

Technical Specifications

Overall Performance

Parameter Name	Parameter Value
Max. theoretical output at outlet (m³/h)	200 (pumping frequency 10-12 times/min)
Max. theoretical outlet pressure (MPa)	14
Main cylinder bore, rod diameter, stroke (mm)	200-140-3100
Delivery cylinder bore (mm)	Φ300
Distributor valve type	S-type valve
Working unit dimensions (L×W×H, mm)	9103 x 2194 x 1592
Power unit dimensions (L×W×H, mm)	5222 x 2910 x 2222
Control cabinet dimensions (L×W×H, mm)	3600 x 600 x 2000
Working unit weight (kg)	Approx. 10500
Power unit weight (kg)	Approx. 8550 (excl. hydraulic oil)
Control cabinet weight (kg)	Approx. 600
Maximum aggregate size (mm)	25
Slump allowable range (cm)	15-28
Outlet diameter (mm)	200

Electrical System

Parameter Name	Parameter Value
Motor model	YE3-400-4
Motor rated power (kW)	2 x 400
Motor rated voltage – frequency	380V / 660V, 50 Hz
Motor rated speed (r/min)	1480

Hydraulic System

Parameter Name	Parameter Value
Hydraulic system type	Open circuit system
First pump group	A11VL0260 + A11VL0260 + A10V028 + G2/22
Second pump group	A11VL0260 + A11VL0260 + A10V028 + G2/22
Pumping oil pressure (MPa)	31.5
Distributing oil pressure (MPa)	16.5
Agitator oil pressure (MPa)	10
Effective oil tank capacity (L)	2350
Cooling method	Air cooling
