Product Details

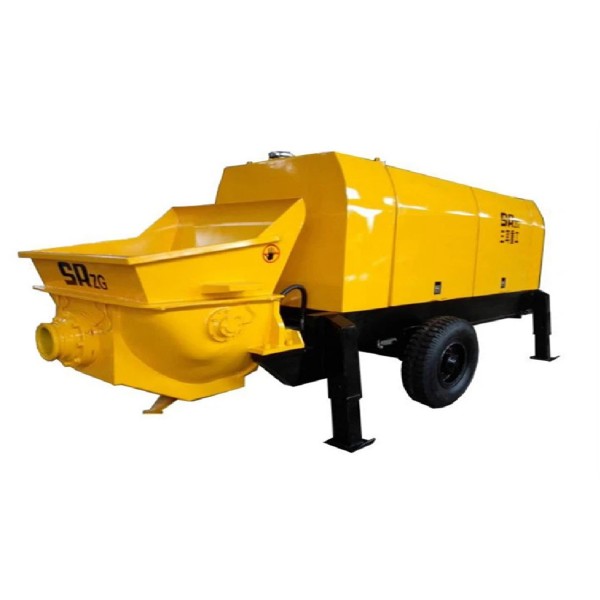

Concrete Trailer Pump

Complete Technical Specifications and Configuration Details

Product Name

Concrete Trailer Pump

Product Model

HBT60-13-75S

Product Abbreviation

None

Overall Machine Parameters

Overall Dimensions

6250 × 1900 × 2330 mm

Rated Weight

5850 kg

Nozzle Form

Not Applicable

Distribution Valve Form

Not Applicable

Maximum Vertical Conveying Distance

115 m

Maximum Horizontal Conveying Distance

780 m

Chassis Section Configuration

Steering Drive Axle

Straight Axle for Trailer

Brand: Changsha Zichen

Engine

Not Applicable

None

Gearbox

Not Applicable

None

Torque Converter

Not Applicable

None

Tires

7.50-16LT

Brand: Yutai

Pumping Parameters

Working Drive Method

Three-phase Asynchronous Motor

Motor Rated Power

75 kW

Motor Operating Voltage

380 V

Hopper Volume

0.8 m³

Concrete Displacement

72 m³/h

Delivery Cylinder Diameter × Stroke

Ø230 × 1862 mm

Main Cylinder Diameter × Stroke

Ø140 × 90 × 1650 mm

System Maximum Pressure

32 MPa

Concrete Outlet Pressure

12 MPa

Maximum Concrete Particle Size

40 mm

Feeding Height

≤ 1400 mm

Variable Diameter Form

Ø180 → Ø150 → Ø125

Concrete Slump

160-230 mm

Delivery Pipe Diameter

Ø125 mm

Lubrication System

Lubrication Pump, Progressive Oil Distributor

Functional Components Configuration

Lubrication Oil Pump

15L Lubrication Oil Pump

Brand: Aike Precision Engineering

Main Cylinder

Ø140 × 90 × 1650

Brand: Sanboshi / Xieli

Delivery Cylinder

Ø230 × 1862

Brand: Sanboshi / Xieli

Main Motor

75 kW Three-phase Asynchronous Motor

Brand: Changsha Motor Factory

Hopper

0.8 m³, High Strength

Brand: Loudi Zhonglifu

Main Oil Pump

112+112 ml/r Duplex Pump

Brand: Hanchuan

Gear Pump

38+32 ml/r Duplex Pump

Brand: Anhui Wanye

Pumping Solenoid Valve

Pilot Solenoid Valve

Brand: Zhenxun ZENXON

Hydraulic and Electrical System

Hydraulic Components

Multi-way Valve

Not Applicable

Agitator Motor

1.25 L/r

Brand: Ningbo Zhongyi

Radiator

FLJ-400

Brand: Xinxiang Hongwei

Remote Controller

Intelligent Remote Controller

Brand: Zhenxun ZENXON

Contactor

Imported from South Korea

Brand: LS (South Korea)

Controller

High-quality Domestic Brand

Brand: Taiwan Yonghong

Cable

National Standard 70*3 Standard Cable

Brand: Changsha Hengtong

Transportation Method

Drive Form

Vehicle Transport or Towing at ≤ 4 km/h
